Special Valve

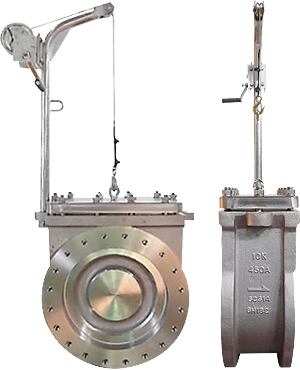

  • Blind Flange Valve

    Blind flange valves are used in pipe lines in order to shut off a flow through the pipe line and to perform full segregation between different fluids, and has a typical field of use on board chemical tankers, product tankers and supply vessels. The valves provide security when blinding liquids like oil, gases and various chemicals. The valves are offered with various flanges such as DIN, Ansi and JIS etc., has a very short face to face dimention and can be operated with a minimum of maintenance.

  1.
  2. 블라인드 플랜지 밸브 A type Short distance

  3. 블라인드 플랜지 밸브 B type

  4.

Specification

Specification
Max. Working Pressure
16 ㎏/㎠
Fluid
Liquids, Oils, Chemicals, Gasses, Steam, Water
Temp. Range
0 - 250℃
Materials
Body (SCS/SC480) / Disc (SCS/SC480) / Sealing(PTFE,VITON)
Size
50A - 600A
