Features

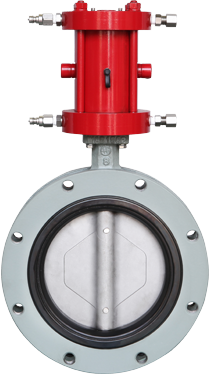

Features 01As Vertical structure, it is not affected by interference of surrounding structure during piping.
02It does not have casting material therefore Watertight function is perfect.
03It is miniaturized and light weight structure compare with existing product.
04It is available for both Double and Single Acting type.
05In emergency, manual operation is possible by gear box.

Specification

Specification
Max. Working Pressure
135 kg/㎠
Operating Fluid
Hydraulic Oil
Temp. Range
-20℃ - 80℃
Actuator Type
Double Acting
Travel Stop
90±5 Control Possible

Dimension Table

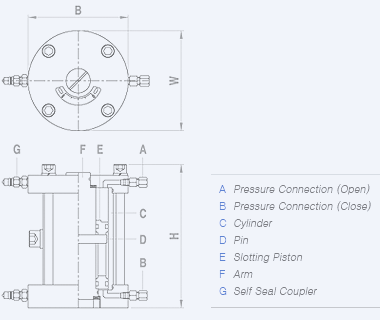

Dimension Table Model HAV-D06 HAV-D08 HAV-D11 HAV-D15 HAV-D18 HAV-D22
B (mm) 110 140 185 240 290 350
W (mm) 110 140 185 240 290 350
H (mm) 165 200 265 325 390 475
Weight (Kg) 6 12 28 65 105 200
Oil Vol (cc) 56 145 371 904 1,678 2,960
Torque (N,m) 164 378 1,000 2,492 4,440 7,660
Hydraulic Actuator
